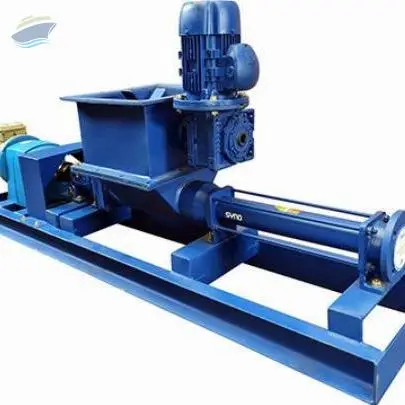

* Bridge Breaker Units are extension to W Series-Hopper Pumps, Bridge Breaker compels the material into the single screw which feeds the progressive cavity pump to result in a steady flow of product .BB Series convinces with a broad spectrum of applications. It is preferably used for conveying compacted, crumbly, lumpy, solid-loaden, shear-sensitive, sticky to dry, thixotropic, dilatant as well as abrasive or adhesive media.
Performance Data
Capacity Range : 2 m3/ hr to 100 m3/ hr
Temperature : Upto 150C
Pressure : Upto 24 Bar
Viscosity : 1,00,000 Cp
* MOC available in wide range as per Application & User's Requirement
Features and Benefits
* Available with 5 bridge breaker designs to suit requirement
* Optimised rpm for high viscous fluids and shear sensitive pumping
* Enhanced hopper designed for efficient conveying of fluid direct to pumping elements
* Shear sensitive pumping
* Max Hard Particle Permissible: upto 22-26mm
* Max Soft (Compressible ) Particle Permissible: 80-100mm
* High Volumetric and mechnical efficiency
* Smooth fluid discharge
* No or extremely low vibration
*Easy to maintain
Typical Applications
40% dry solids, minced meat, fig paste, peanut butter, fruits, onions and many more
* Syno F Series Pumps are designed for handling food and beverages pumps industry applications. All metallic parts in contact with the medium being handled are fabricated in smooth finish stainless steel. These food pumps are provided with metal bonded aseptic food grade stator resistant to oil & fats. Sealing option is provided in hygienic quality gland packing or mechanical seal. These food grade pumps are also available with CIP port configuration. For highly viscous and non-flowable liquids, these pumps can be customized with wide throat configuration. Standard connections available in IDF, SMS unions..
Performance Data
Capacity Range : 1 m3/ hr to 300 m3/ hr
Temperature : Upto 150C
Pressure : Upto 24 Bar
Viscosity : 1,00,000 Cp
* MOC available in wide range as per Application & User's Requirement, preferably complete SS.
Features and Benefits
* Cleaning In Place
* High Suction Lift & Low Fluid Velocity
* Non Contaminating Metals
* No Retaining Pockets
* Non Clogging
Positive Displacement
Reversible
Self Priming
Uniform Flow
versatility
Typical Applications
Dairy Products
Sugars & Starches
Wines / Brewery / Liquor / Soft Drinks
Bakery
Edible Oil
Malt & Cocoa, etc.
Meat, Fish & Animal Foods
Fruits & Vegetables
Personal Care / Cosmetics
Baked Goods
Beverages
Sauces / Glucose / Jam / Purees
Chocolate Mix
Fruit Pulp
Beer
Minced Meat
Curd / Yoghurt
Sugar Syrup
Honey
Medical Formulations
Yeast
Molasses
Syno manufactures versatile range Progressive or Progressing Cavity Pumps since 1975..
Syno pumps are known among worldwide users seeking intelligent solutions, products of the highest possible quality and reliable service. Our products, used in varying areas, are consistently superior in design. Using the best quality materials available, we provide our users with fast, flawless service to ensure that all pump systems and pump types operate in the safest, most economical & possible manner.

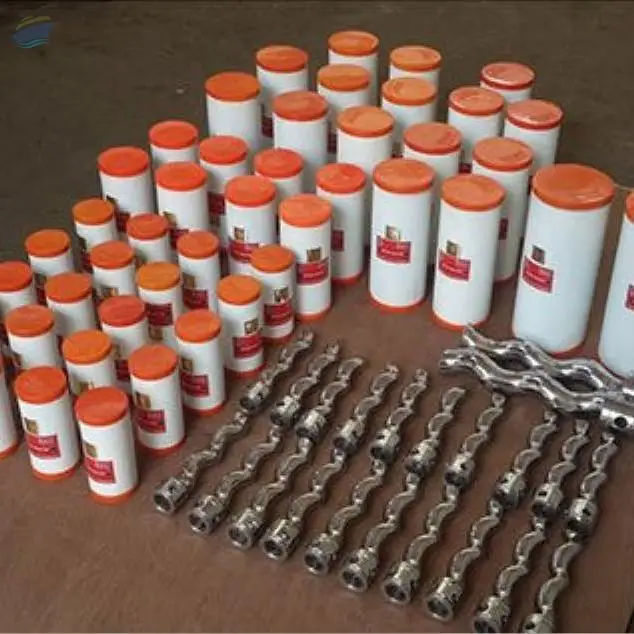

* Our Retrofit Spare Parts are ISO 9001:2000 certified products and our every spare part is produced with accurate measures. For their manufacturing we use high quality raw materials. These spare parts thoroughly undergo heat treatment processes and outer layering. Each of them are allowed to pass through strict quality tests to make sure that they possess accurate manufacturing tolerance. Also, these tests make them capable of dimensionally interchange their parts. Our genuine spare parts as well as after-sale parts, both are equally processed with tough techniques. Having increased abrasion and resistance to corrosion provides these spare parts an ability to be highly durable. Additionally, we offer quotations for the exact retrofit spare parts that our customers want.
* Syno Adjustable Stators For Extra Durability Features & Benefits:
* Our Syno Adjustable Stators are designed in a way to provide them an extra durability and long lasting ability. When compared with an ordinary stator, it has an outstanding capacity to yield twice the life of the ordinary one. These stators can be adjusted manually to have desired working features.
* Extra qualities of our syno adjustable stators:
* Assured Interchangeability
* Timely manufacturing and distribution
* Have accurate Dimensions
* Purchasing Under one house
* Economical pricing
* Top notch and tested quality
* Leakage proof guaranteed
* No quick servicing required
* Our company Syno is able to set itself as a landmark in sales and after sales services. We at Syno believe that a company sprouts only when the after sales services are excellent and not just because of the products that it offer. We maintain proper stocks of spare parts on ready to use basis & trained personnel support to reduce the down time.
* Usually we deliver our products in a span of 24 to 48 hours. We issue a WIP after the order is confirmed by our team. We follow detailed procedures and update the customers with progress report of our products in quick intervals.
* We have a dynamic experience of 30 years in producing progressive cavity pumps and their components. Our engineers know the critical values of providing the parts with accurate dimensions. We also make sure that these spare parts function smoothly without any downtime. We have a handy production unit laced with robust machinery, furnishing us the capability to produce and distribute superior quality of pump spare parts. The raw materials that we use for their manufacturing, they are of top notch quality procured by the trustworthy vendors.
Special Purpose Units
We also specialise in manufacturing customize/tailor made pumps as per Customer's requirement

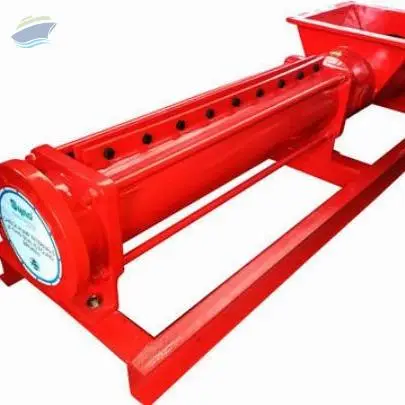

* X1 Grout Pump series gives a main advantage for the operator like valveless positive-displacement pumps are capable of transporting cement based grouts safely, quickly and pulsation free. These units comes with variety of Rotor and Stator geometries providing unsaid advantage over any type of cement based grout been used.
Performance Data
Capacity Range : upto 60 m3/hr
Pressure : upto 40 Bar
Features and Benefits
* Separate under gland shaft for quick maintenance and servicibility
* Economical units and absolute value for money
* Continuous low-pulsation conveyance unaffected by fluctuations in pressure and viscosity
* Conveyance volume in proportion to rotation speed with high dosing precision over the entire rotational-speed range
* High pressure and high volume capability
* Syno 'BBC' Series is comprised of Barrel pumps to empty containers safely and efficiently with the minimum of effort. This is a vertical self-contained pumping unit that efficiently handles relatively large volumes of liquids, including gasoline, fuel oil, and sea water during barge unloading and transfer operations. These Pumps are suitable for numerous applications within the oil, gas, chemical and many manufacturing industries. These pumps meet the demands of complete fluid management as well as provides safeguard from spillage issues. Further, the high safety standards and reliable performance of these pumps also make them perfect to handle corrosive & flammable liquids like gasoline, petroleum products and others. They are perfect for low as well as high viscous liquid. Because of their lower noise and easy maintenance, they are highly preferred.
Performance Data
Capacity Range : Upto 500 LPH
Temperature : Upto 180C
Pressure : Upto 12 Bar
Viscosity : Upto 1 milion cP
Features and Benefits
* Light weight & hence portable
* Barrel pumps with their versatility help to provide a complete solution to your fluid management needs
* Modular design construction for easy maintenance
* All components are interchangeable
* Saves considerable time, labour, spillage
* No Welding is involved in any part of Tubes
* Easy maintenance and easy to operate
* Interchangeable components
Typical Applications
Acids
Beer
Diesel Oil
Lubricating Oil
Furnace Oil
Drug Formulations
Varnish Chemical Solutions
Chemical & Process
Brewery
Electrical / Power
Engineering
Mining
Oil
Paint & Varnish
Ink
Pharmaceutical etc.
Solvent & Chemical
Glycerin
Liquid Paraffin (heavy)
Resin Solution

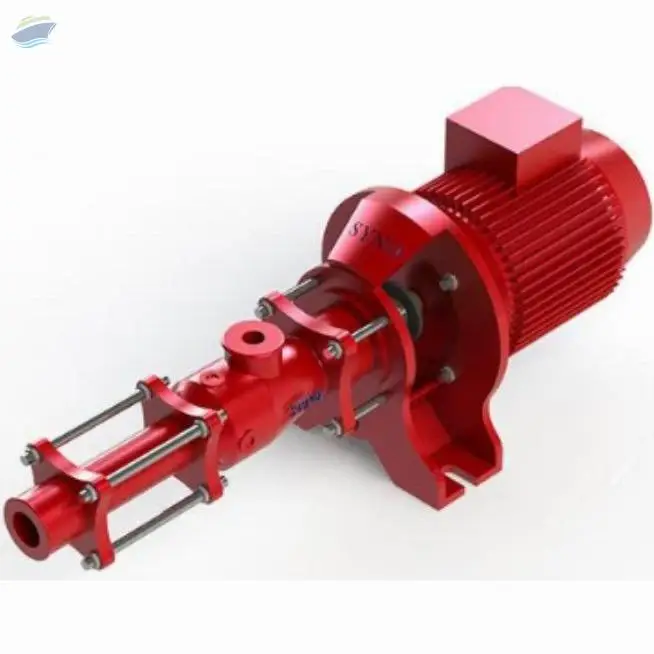

* Syno 'DC' Series offers a range of Dosing & Metering Pumps with Syno's innovative design, quality workmanship and reliability. This Series is specifically designed for low flow, metering or dosing applications - offering continuous and accurate repeatability.'DC' Series Pumps are used for feeding intermittently or continuously a controlled quantity of fluid / chemical within pre-determined time or at fixed intervals. The compact 'DC' pumps have high tolerance to aggressive chemicals and the renowned reliability of Syno. The repeatability accuracy has less than 1% fluctuation. These pumps are self priming, and the gentle non pulsating pumping action helps maintain product integrity with even the most difficult materials. The range of suitable substances includes viscous and slurry products, solids in suspension and air/liquid/solids mixtures. These versatile pumps have output directly proportional to speed. These are in hot demand by chemical processors, pharmaceuticals, photo film, textile, cosmetics, petroleum, confectionery, detergent, beverages and host of similar industries.
Performance Data
Capacity Range : 0.1 m3/ hr to 1.0 m3/ hr
Temperature : Upto 120C
Pressure : Upto 48 Bar
Viscosity : 50,000 CP
Features and Benefits
* Easy to install and works efficiently
* Low maintenance hence Inexpensive to run
* User Friendly
* No Vibrations or Pulsations
* very high priming and flow reversibility
* Smooth transport of media with solids
* Stainless steel, easy to clean
* Complete discharge, residues < 1 %
Interchangeable components
ypical Applications
Acids & Alkalis
Sludge dewatering
Food ingredients
Brewing, winemaking
Flocculants & Chemicals
Dyes & Inks
Oil well dosing
Waste Water Treatment
Pulp & paper
Pharmaceutical
Cosmetics
Mining
Food
* Pumping highly viscous, solids laden, non-Newtonian fluids are a difficult and complex process. At Syno, we have the knowledge and expertise to help you. The Wide Throat "W" Series has been designed to handle highly viscous materials, such as sludges, slurries, thick non-flowing pastes and de-watered sludge cake which ensures easy and efficient handling of high-viscosity fluids with viscosities up to 1,00,000cP. The design of the "W" Series is such that many different applications can be handled. This transfer pump consists of an enlarged rectangular inlet with a screw conveyor to assist the product into the pumping element. The hopper type suction inlet allows gravity flow of extreme viscous materials on to the augur cum coupling rod which pushes the substance into the pumping cavity. For the many difficult and varied applications encountered, the pumps are run at a relatively slow speed, therefore the pump will handle shear sensitive products with minimal product damage, abrasive solids in suspension and highly viscous materials. This pump offers higher level of performance than standard open throat style pumps.
Performance Data
Capacity Range : 0.5 m3/ hr to 200 m3/ hr
Temperature : Upto 150 C
Pressure : Upto 24 Bar
Viscosity : 1,00,000 Cp
* MOC available in wide range as per Application & User's Requirement
Features and Benefits
Optimised rpm for high viscous fluids and shear sensitive pumping
Enhanced hopper designed for efficient conveying of fluid direct to pumping elements
Shear sensitive pumping
Max Hard Particle Permissible: upto 22-26mm
Max Soft (Compressible ) Particle Permissible: 80-100mm
High Volumetric and mechnical efficiency
Smooth fluid discharge
No or extremely low vibration
Easy to maintain
Typical Applications
High to Very High Viscous liquids

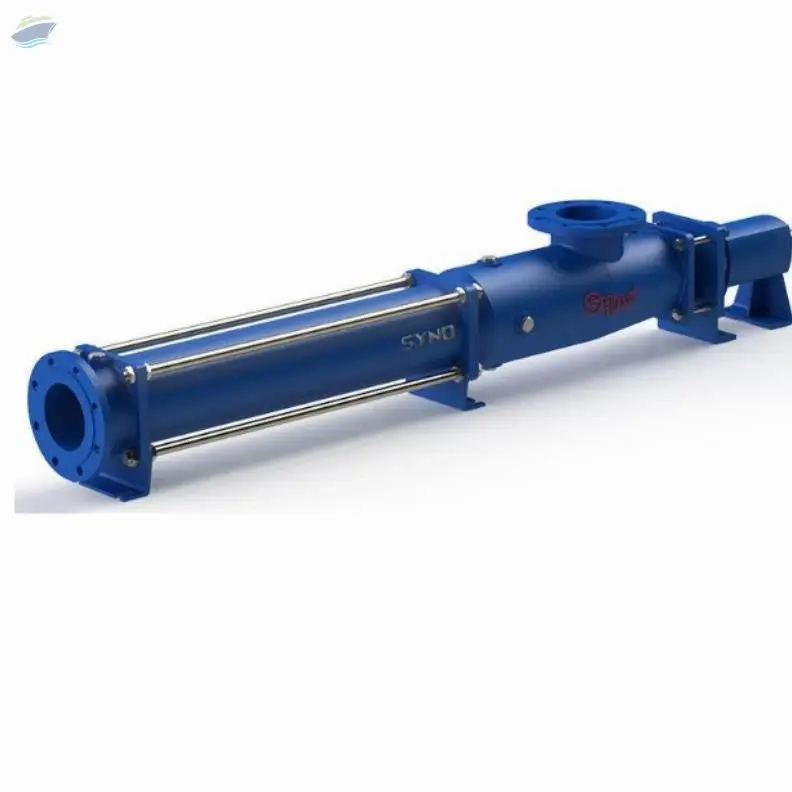

* S' Series is ideal for handling slurries, viscous, shear sensitive or two or tri phase mixtures or when applications require, significant suction lift capabilities. These pumps are used for a wide variety of pumping and transfer duties. The design of Pump is ideally suited for both low to high flow applications and also allows for the development of multi-stage pumps that increase the pressure handling capabilities. These Pumps are found tough rugged industrial applications handling anything from abrasive slurries, aggressive or reactive chemicals, to viscous liquids, oils, or suspensions and aqueous solutions at elevated temperatures. They are known for their flawless performance, efficiency & trouble-free operation along with long service life features. The Standard "S" Series Pump is of Cast Iron construction with liquid touchable parts of alloy steel / stainless steel, depending on the fluids to be handled. Shaft Sealing is ensured by Gland Packing & Mechanical Seal (optional). These pumps are available at highly affordable rates in various sizes and capacity.
Performance Data
Capacity Range : 1 m3/ hr to 350m3/ hr
Temperature : upto 150C
Pressure : upto 48 Bar
Viscosity : upto 1,000,000 cps
* MOC available in wide range as per Application & User's Requirement
Features and Benefits
Low total cost of ownership
Positive displacement, Non-pulsating flow- Accurate, repeatable flow
Pressure independent to pump speed
Low NPSH requirement
Self-priming
High suction lift upto 28 feet
Low Shear Pumping
Max Hard Particle Permissible: upto 22-26mm
Max Soft (Compressible ) Particle Permissible: 80-100mm
Reversible Operation
High Volumetric and mechnical efficiency
Smooth fluid discharge
No or extremely low vibration
Easy to maintain
Typical Applications
Viscous and Runny Liquids (flowable) having solid particles, entrapped gases etc..
45 years in Screw Pump Manufacturing...
We maintain our leadership by constantly upgrading the technology as well as expanding the product range. We believe in efficiency by precision in construction and manufacturing and so we are continuously improving and developing technology that delivers better value for money by incorporating features that reduces the life cycle cost of the equipment, by slashing maintenance, time & effort, increasing component life, reducing power consumption etc.
