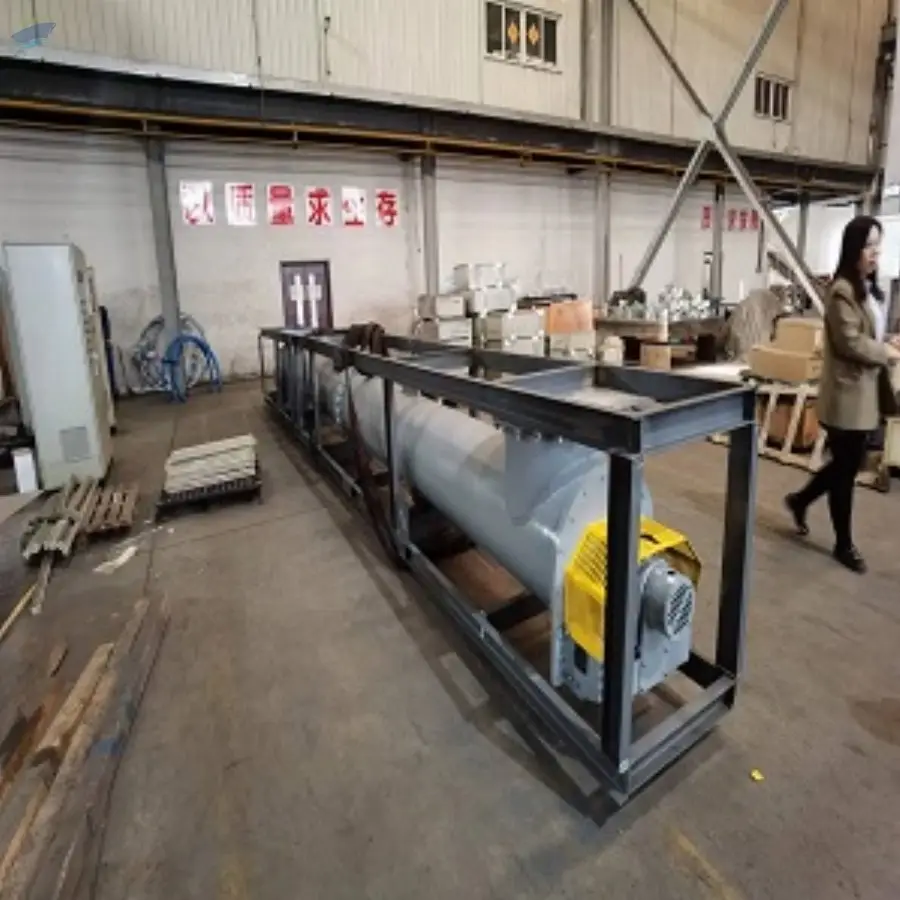

We provide the full-scale service as EPC contractor, including design, engineering, procurement, and commissioning, etc. We have enough experiences in projects of cement plant and grinding station, and we have experienced workers and engineers with dedication to this field for many years. We have a great number of manufacturers of various related equipments and spare parts
Name: Paper plasterboard production line
Special Features: Production line speed: 10M/min, Annual production is calculated according to 7/24/300 continuous production, Annual output is more than 5 million square meters, Can produce 6000 sheets of 1200x2400 gypsum board per day, Product quality: Under the condition that the raw materials meet the technical requirements, the product quality meets the GB/T9775-2008 standard, and the workers reach the standard after being proficient in normal production, Length 2000-2500MM, Width 1200-1220MM,Thickness 8-15MM, Degree of automation: the operating system uses electronic automatic Control.

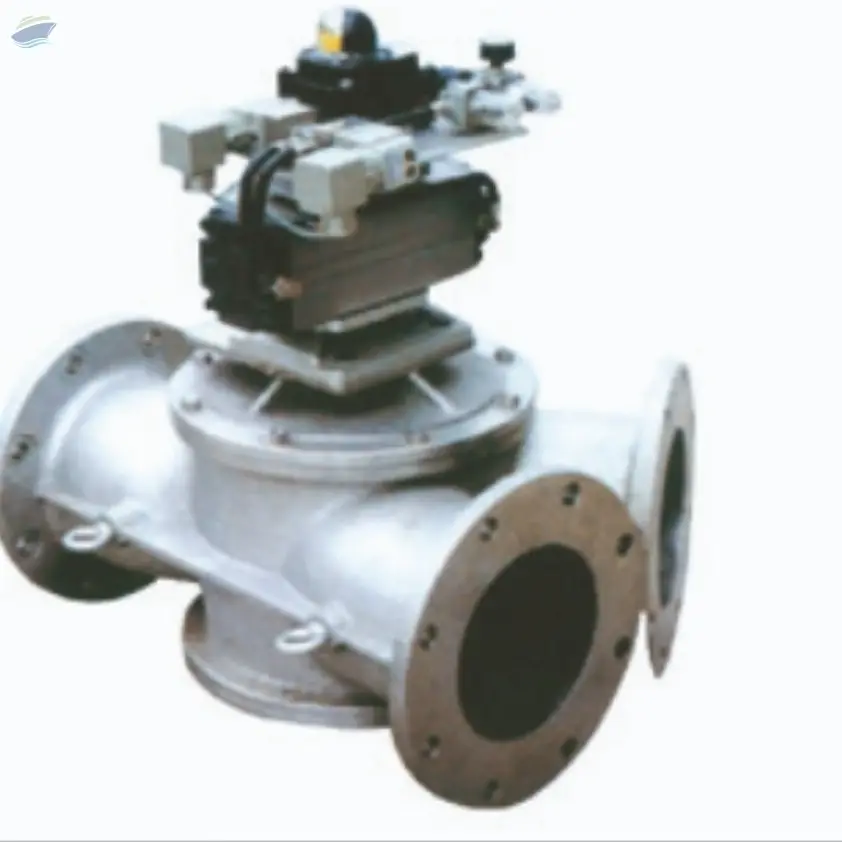

Special Features: The valve, which is also named separating material machine, is widely used in building material, metallurgy, mining, light industry and food industries etc. It is the ideal equipment to change flow direction of solid crystal and powder material in transportation system. The valve is welded in fine steel and equipped with different actuators according to the different demands. It has the features of lightweight, antifriction, definite indicating direction, handy switching and flexible operation etc. Type is side three-way liuzi, type is face three-way liuzi, type is four-way liuzi. The driving types are five: S denotes manual, D denotes electric, Z denotes automatic, Q denotes pneumatic and Y denotes electric hydraulic
This valve is widely used in the pipe system such as venting and environment protection in building material, glass, mining, power, light industry and papermaking departments. It can change the flow and cut off gas medium in the pipe by the different control signal. The valve has the features of lightweight, compact structure, endurance, little in the lost of flow resistance, high working pressure, flexible operation, definite direction, easy to maintenance and long life. It can be installed at any angle. It is suitable in the condition of adjusting, cutting off and self-protecting quickly. The valve is used with DKJ, ZKJ, Bernard electric actuator and other accessory to form a complete set to realize manual and automatic exchange without interference, micro-computer long-range control, automatic control or center concentrating control. It is the ideal equipment of realizing operation of automatic control and adjusting flow.

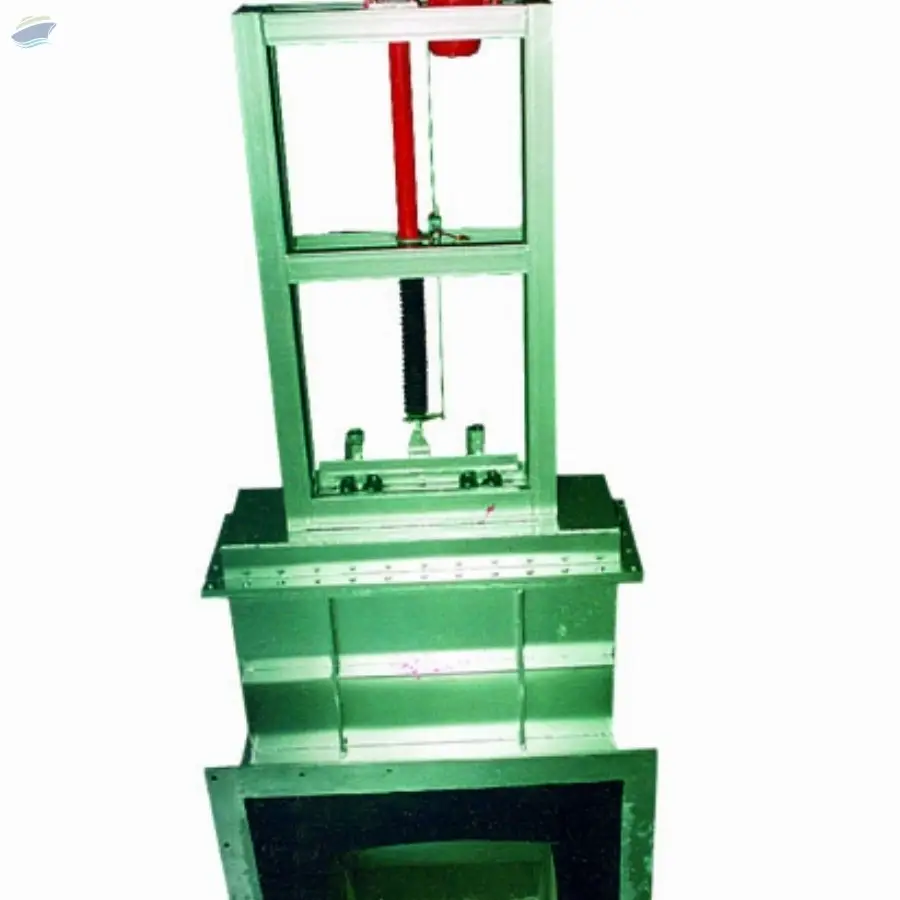

Name: High Temperature Saving Energy Gate Valve
Special Features: The valve is welded in high strength heat-resistant steel, stainless steel and fine carbon steel. It is high-temperature resistance, high in strength, effective, endurance, handy to operate, definite direction, easy to maintenance and long life. High pressure cooling air device cools the disc and ensures its rigidity and non-distortion. The valve has two driving mode: integer and part. The integer driving device is fixed on the undercarriage. Part driving device canâ??t be controlled and can be installed refer to the userâ??s demand. Driving type is windlass elevating (open-close signal), electric actuator elevating (4ï½?20mA current signal), electric hydraulic, electric draw stem elevating (open-close signal). Suitable temperature: 350, Suitable medium: High temperature gas including Smoke, air, gas with powder, etc.
Special Features: The valve is welded in stainless steel and fine carbon steel, having double layers keeping temperature lining made in fire material. It also has the features of resistant to the high temperature, efficient in saving thermal energy, impact structure, easy to open and close and handy to operate. The valve's driving mode is part. Part driving device cannot be controlled and can be installed refer to the user's demand. Driving type is windlass elevating (open-close signal), electric actuator elevating (4~20mA current signal), electric hydraulic, electric draw stem elevating (open-close signal). Suitable temperature: 700, Suitable medium: High temperature gas including Smoke, air, gas with powder, etc

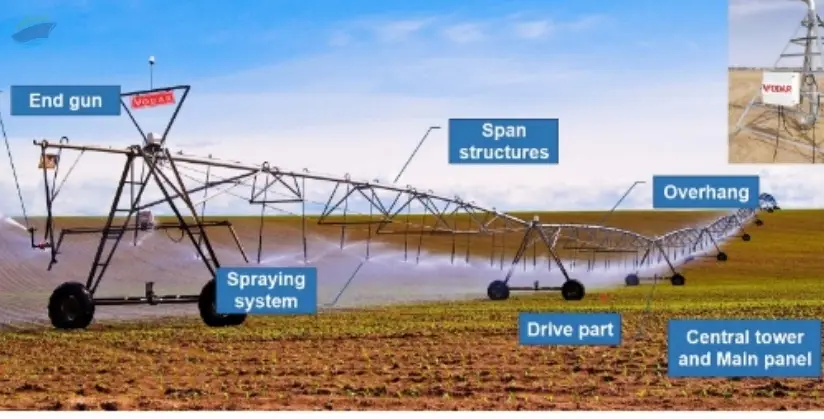

Crop irrigation can be got through data collection and analysis, in order to timely adjust the irrigation resources, and effectively monitor the process of irrigation
Special Features: woven with polypropylene material, usually used to contain grain, cement, sand, etc., sturdy and durable, with good chemical stability and free from most acid-base erosion. Can be made with various pictures as demanded of any color. Size and shape can be made as required.

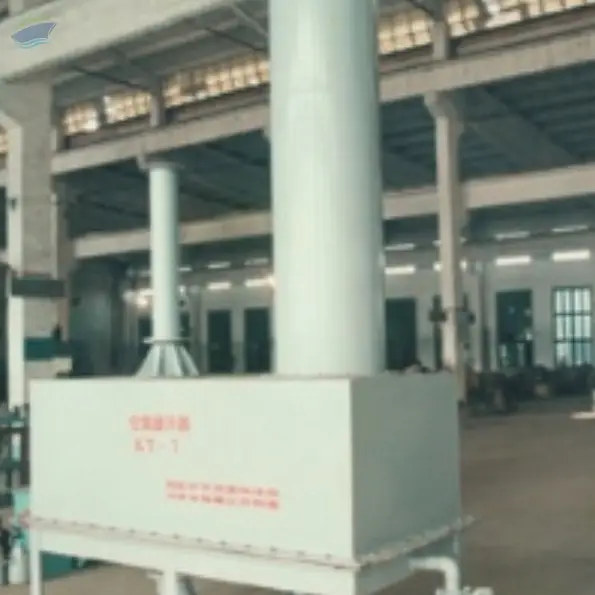

Special Features: The device can transport dry fluidity powder material in any distance. The transport ability is 1500m3/h. It is widely used in building material, metallurgy, light chemical and feed industries etc. to feed or transport cement, powder coal and flour of milling and stove. But it is not suitable for the material of great granularity, big washiness and bad fluidity. The device is divided into three layers. Puff layer is below the device, transport material layer is above and ventilate layer is in the center of device. Low pressure and little volume air supplied by wind machine flow from puff layer to ventilate layer, making the material flowing and realize the moving of material. It has the features of little cost of energy, no noise, no pollution, no lubrication, low maintain ratio, high carrying ability, lightweight, saving effective place, agility to dispose wire and easy to change transport direction. It is only can transport in certain angles, not upwards. Otherwise please choose air-elevating system. Great obliquity is good for transporting if the technics disposal permits. Obliquity is always 4 ï½? 6%. Commendatory obliquity is more than 10% when transport coarse material.
-Light steel structure, designed specially to bear weight as floor without inside materials, with one piece of structure buckled with another one to form the whole floor, usually used in auditorium, cinema, conference hall, etc. The total weight of the structure is light, but the weight it can support is huge.
