Guru Metachem is Largest Manufacturer & Exporter of Radex Insulation Powder & Expandable Heat Insulation Compound(Radex).
Use of Insulation Material to Maintaining Temperature in Ladle& Tundish in Steel Plants.
We are also engaged in offering our quality conscious industrial customers quality Expandable Heat Insulation Compounds. These are basically used in steel industries on Ladle or Tundish and help in producing tailor-made refractory that are at par with international standards. Suiting specific applications of Industries like Steel, Glass, Cement, Coke Oven, Re-rolling Mills, Sponge Iron and others, we can offer these in different specifications to choose from.
Product Information:
European Based Finest filler & additive
G FINE Micro FINE ULTRA FINE EROPEAN BASED FINEST FILLER
G FINE is a new generation supplementary cementitious material (SCM) with a built-in high tech content. In spite of its high fineness it does not increase water demand at the dosage range of 5 to 15 percent of normal OPC in general. In fact concrete slump is seen to be improved, due to the dense packing of cementitious material, producing low void content. The use of G FINE results in hydrated cement matrix to comprise of very small pores.
G FINE is a specially processed product based on high glass content with high reactivity obtained through the process of controlled granulation. The raw materials are composed primary of low calcium silicates. The processing with other select ingredients results in controlled particle size distribution. G FINE can also be used as a high range water reducer to improve compressive strength or as a super workability aid to improve flow.
G FINE can be used as practical substitute for Silica Fume as per the results obtained. If the advantages of G FINE are observed in the concrete mix design, the initial rate of strength development was found to be increased or similar as that of Silica Fume.
Where to use G FINE :
Residential, roads, airports, commercial building. Producing mass concrete structures and pile. In high-rise structures the concrete is to be pump easily. Low water to binder ration for high performance concrete. Precast concrete element for heavy structures precast units. To improved initial strength and increase faster . Better retention of workability and improved strength gain.
Benefits of G FINE :
The workability of the mix retention is improved Improve durability and permeability of concrete Increased strength of concrete Reduction in segregation can be observed in the mix Reduction in heat of hydration of the mix Non- toxic , eco friendly cost effective, economical solution
G-FINE
Packaging:
G FINE is available in Bulk Jumbo bags with plastic inner liner. The product is also available in 25kg plastic lined bags.
Storage:
G FINE when stored correctly has an indefinite shelf life. Like cement, G-FINE must be protected from contamination and moisture. The product can be stored in bulk in a clean, dry storage silo Or warehouse .
We Are Manufacturer Of This Casting Powder:
Casting Powder Casting Powder forms a good lubricating film on the surface of mould not allowing solidifying metal adhesion to the mould.
Casting Powder Casting Powder provides easy and fast solidification of metal by providing high rate heat removal from metal.
Casting Powder Casting Powder gives very good performance at elevated temperatures with the aid of its well selected additives.
Casting Powder Casting Powder increases the quality of metal surface.
Casting Powder Casting Powder is cheaper than Rapeseed/Casting Oil.
Specification :
Casting PowderCaO% : 30 - 33
Casting Powder SiO2 % : 33 -- 36
Casting Powder Al2O3 % : 8 -- 10
Casting Powder Na2O/K2O % : 6 -- 8
Casting PowderF% : 4 -- 6
Casting Powder C free% : 5 -- 7
How It Works
Casting Powder Casting Powder contains low melting constituents that instantly generate liquid slag, which penetrates into the gap between the mould and the solidifying shell of the billet. Casting Powder is added in small amounts and continuously over the casting duration. The melting of the Casting Powder occurs slowly in layers. Hence, the top surface of the liquid metal in the billet / slab / bloom always remains protected from the atmosphere.
Benefits:
Casting Powder Casting Powder Lubrication
Casting Powder Casting Powder Protection of liquid steel from atmospheric oxidation
Casting Powder Casting Powder Promoting required heat transfer between the mould and solidifying shell
Uses:
Traditionally Casting Powder is used for bloom and slab casting. Now, it is used for billet (open) casting also as an alternative to mould oil for some plants.
Physical Properties:
82% passing through 200 mesh
We are offering a wide range of cast Iron Powder. Our offered cast iron powder is processed in line with global quality standards using the best quality basic chemicals at customer end. Tested on an assortment of parameters set by the industry, these are broadly demanded all across the globe.
We are supplier of Vermiculite, It is used at Steel Industries..
We are supplying qualitative range of Vermiculite Mineral. This hydrous phyllosilicate mineral is quarried from the best sources across the country and Suppling to customers.
Size : 0-4 mm
Size : 2-6mm
Features:
Heat Insulation Proper
Fire proof
Light weight
Eco friendly
Color : Light Green
We also have with us rich industry experience in successfully handling the requirements of Synthetic Slag Material.
Size Available in Powder Form..
Its usage is very detrimental in the quality of steel as its processing can lead to harmful reversion of P, S and other unwanted oxides. These slag containers interact with steel in a balanced way, thus assisting in maintaining proper equilibrium with Steel. Other than this, it helps in absorbing inclusions as well as impurities, thus helping in producing a cleaner as well as better quality steel.
Features:
It adjusts toxicity of Slag.
It lowers melting temperature of slag.
It helps in increasing its fluidity.
It helps in absorbing inclusions and impurities, thus producing cleaner steel.
We also have rich expertise in successfully handling the emerging requirements of Ladle Covering Compound Radex . These find usage as ladle and tundish covering compounds and have in them high insulating power along with good expandability as well as spread-ability. It instantly spreads to cover entire molten steel surface in ladle and tundish and helps in significantly reducing heat loss that occurs due to radiation from top surface of liquid steel. Further, it also helps in maintaining consistent temperature in ladle as well as in preventing temperature drop as well as freezing of metal in longer duration casting processes.

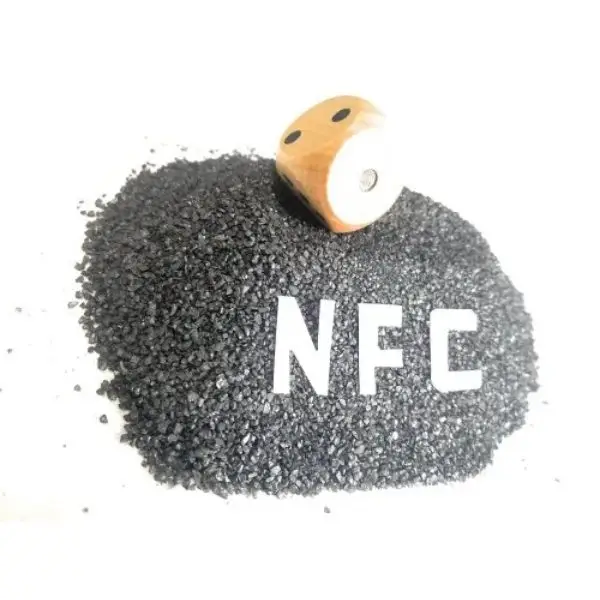

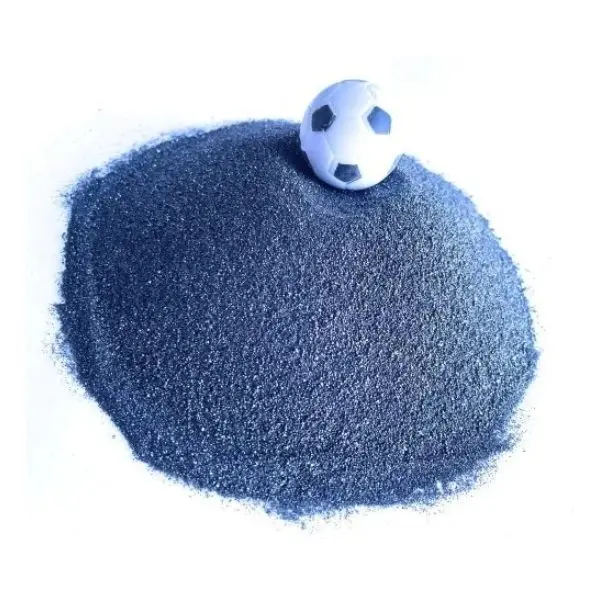

We are leading supplier of Nozzle Filling Compound. Carefully graded refractory Nozzle Filling Compound (NFC) which can be made as per the requirements of the customer's need for steel transfer ladle with slide gate system. Ladle Filler Sand. As it posses selected granulometry and high refractories, it does not sinter when in contact with molten steel around 1600 degree Centigrade temperature with high ferrostatic head when kept in ladle nozzle well cavity. Thus, it results into free flowing of NZ (Nozzlex) when slide gate is opened and it comes out freely or with minor oxygen lancing establishing a very smooth stream from the ladle. Ladle Filler Sand
Available in three types: Ladle Filler Sand

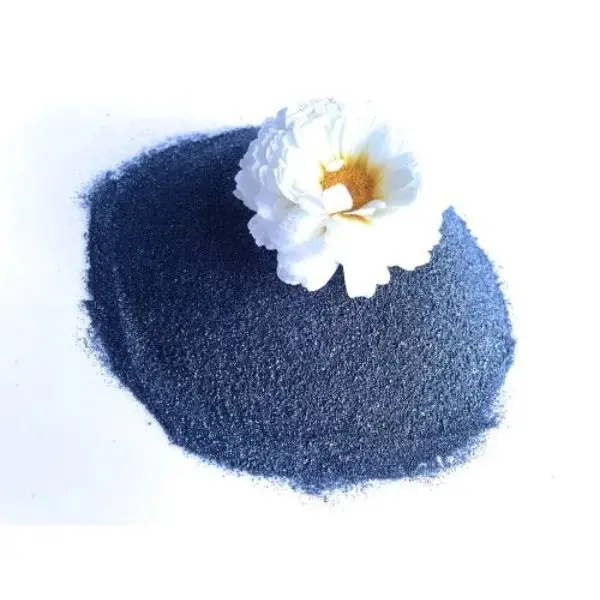

Chromite Base - Res-commended for Mild Steel Production
Zircon Basr- Recommended for Mild Steel Production
Quartz Base.
We are manufacturer of many kind of Radex Heat Insulation Compound with various chemistry. We provide many type of packing for smooth operations.
Ouir manufacturing capacity : 1500 mt per month
We are leading manufacturer , Exporter, Supplier of Rice Husk Ash.

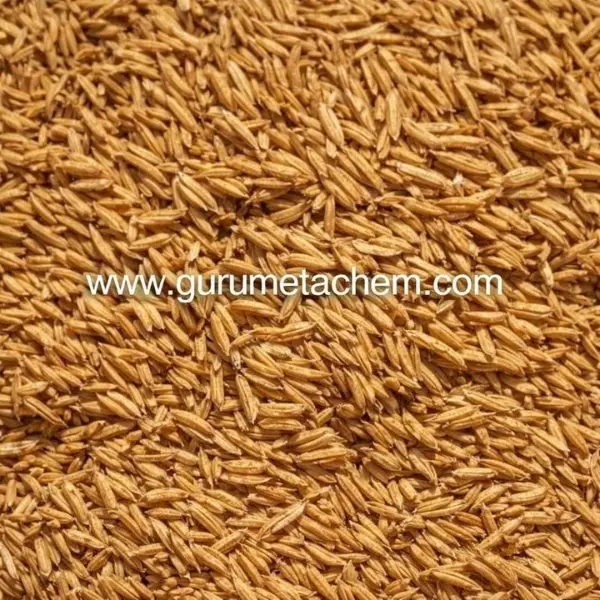

Rice milling generates a by product know as husk . This surrounds the paddy grain. During milling of paddy about 78 % of weight is received as rice , broken rice and bran .Rest 22 % of the weight of paddy is received as husk . This husk is used as fuel in the rice mills to generate steam for the parboiling process . This husk contains about 75 % organic volatile matter and the balance 25 % of the weight of this husk is converted into ash during the firing process , is known as rice husk ash ( RHA ). This RHA in turn contains around 85 % - 90 % amorphous silica. So for every 1000 kgs of paddy milled , about 220 kgs ( 22 % ) of husk is produced , and when this husk is burnt in the boilers , about 55 kgs ( 25 % ) of RHA is generated.
India is a major rice producing country , and the husk generated during milling is mostly used as a fuel in the boilers for processing paddy , producing energy through direct combustion and / or by gasification . About 20 million tones of RHA is produced annually. This RHA is a great environment threat causing damage to the land and the surrounding area in which it is dumped. Lots of ways are being thought of for disposing them by making commercial use of this RHA. The particle size of the cement is about 35 - 45 microns . There may be formation of void in the concrete mixes , if curing is not done in properly . This reduces the strength and quality of the concrete . Our product ? Silpozz ? which is made out of this RHA is finer than cement having very small particle size of 25 microns , so much so that it fills the interstices in between the cement in the aggregate. That is where the strength and density comes from. And that is why it can reduce the amount of cement in the concrete mix .
RHA is a good super-pozzolans . Silpozz can be used in a big way to make special concrete mixes . There is a growing demand for fine amorphous silica in the production of special cement and concrete mixes ,high performance concrete ,high strength, low permeability concrete, for use in bridges, marine environments , nuclear power plants etc. This market is currently filled by silica fume or micro silica , being imported from Norway, China and also from Burma . Due to limited supply of silica fumes in India and the demand being high the price of silica fume has risen to as much as US$ / ton in India.
Technical Specifications:
SiO2 : Silica 85 % minimum
Humidity:2 % maximum
Particle size: Powder or Flakes
Colour:Grey Black & White
Loss on ignition at 800C 4 % maximum
Silica fume, also known as micro silica is an amorphous silicon dioxide, silica. It is an ultrafine powder collected as a by-product of the silicon and ferrosilicon alloy productionThe main field of application is as pozzolanic material for high performance concrete.
Technical Specifications:
SiO2 â?? Silica : >90%
Color : Grey
Application
Because of its extreme fineness and high silica content, silica fume is a very effective pozzolanic material. Standard specifications for silica fume used in cementitious mixtures are ASTM C1240,[8] EN 13263.[9]
Silica fume is added to cement concrete to improve its properties, in particular its compressive strength, bond strength, and abrasion resistance. These improvements stem from both the mechanical improvements resulting from addition of a very fine powder to the cement paste mix as well as from the pozzolanic reactions between the silica fume and free calcium hydroxide in the paste.
Addition of silica fume also reduces the permeability of concrete to chloride ions, which protects the reinforcing steel of concrete from corrosion, especially in chloride-rich environments such as coastal regions and those of humid continental roadways and runways (because of the use of deicing salts) and saltwater bridges.
Effects of silica fume on different properties of fresh and hardened concrete include
a) Workability: With the addition of silica fume, the slump loss with time is directly proportional to increase in the silica fume content due to the introduction of large surface area in the concrete mix by its addition. Although the slump decreases, the mix remains highly cohesive.
b) Segregation and bleeding: Silica fume reduces bleeding significantly because the free water is consumed in wetting of the large surface area of the silica fume and hence the free water left in the mix for bleeding also decreases. Silica fume also blocks the pores in the fresh concrete so water within the concrete is not allowed to come to the surface.
Application Areas:
High performance concrete
High strength, low permeability concrete
Industrial flooring
Water tanks and sumps
Chemical storage tanks
Basements and sewerage pipelines
Refractory mixes etc.
Petroleum Referineries
Tunnels
Micro Silica Powder that we offer is well processed and therefore, is the perfect option on which buyers can easily rely. We are named among the renowned Manufacturers, Exporters and Suppliers of Micro Silica Powder. It is formulated under the strict vigilance of experts so as to ensure its accurate composition. One can place retail as well as bulk orders for Micro Silica Powder with us.
Description : Silica fume consists of very fine particles. Because of its extreme fineness and high silica content, silica fume is a highly effective pozzolanic material. Being a highly reactive pozzolan, silica fume chemically reacts with the calcium hydroxide present in the cement paste, creating a stronger calcium silica hydrate 'making it sticky'. The result is improved paste to aggregate bond (excellent for shotcrete) and higher concrete strengths. Silica Fume is typically grey in colour and is categorised as a supplementary cementitious material (SCM). Silica Fume is compliant to AS/NZ 3582.3:2002 and is described as a Densified Amorphous Fumed Silica.
Typical Uses : Silica Fume can be used to produce all grades of concretes. The chemical and physical properties of Silica Fume can greatly enhance the strength performance and the bonding properties of concrete. Silica Fume can be used in various applications and projects: Commercial, Civil, Mining and Marine projects. Silica Fume is suitable for inclusion in general concrete mix designs and in particular has application in high strength/ performance concretes and shotcrete / spray mixes.
Features : The addition of Silica Fume can provide;
Increase compressive strength
Reduces chloride ion permeability
Increase abrasion resistance
Enhanced sulphate resistance
Improved durability
Enhanced resistance to chemical attack and deterioration
Increase bond strength
Guru Corporation is the Gujarat's largest manufacturer and supplier with superior market experience since last 10 years of Silica Fume.We have a good and advanced technology for this product. G-Chem is always superb product for any RMC. and also we provide Bulker facility for smooth transportation. Our all customers are always proud on us.
The Slag conditioner offered by us helps in adjusting Slag composition in a way that it interacts in a balanced way with steel, thus helping in maintaining proper equilibrium. Further, it also helps in absorbing inclusions as well as impurities and assists in producing a cleaner as well as better quality steel. Further, the use of the material also helps in lowering melting temperature of slag as well as increasing its fluidity, thus helping in maintaining proper as well as desired slag composition.
We also have extensive industry experience in successfully matching up with the demands of Slag Conditioner Material. It features pure constitution and assists in ensuring that there is no harmful reversion of P, S, and unwanted oxides in the Steel making process.
