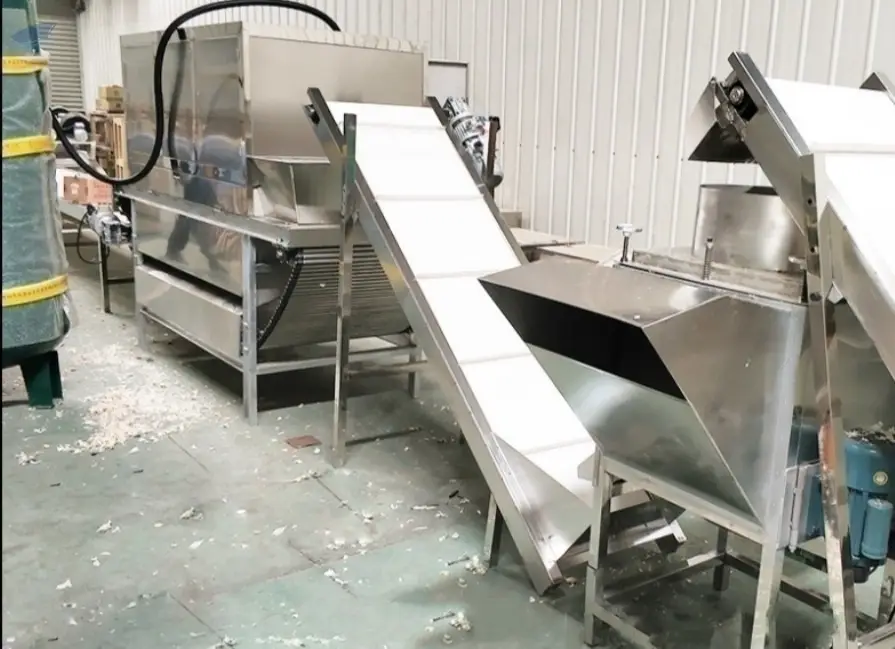

Garlic Peeling Machine Production line
1--Garlic peeling process : garlic conveyor---garlic split ---conveyor---garlic peeling with air compressor system---garlic color sorter (bulk goods)---hand sorter(small goods)
with semi-auto ,full-auto ,capacity 100kg -5000kg/hour ,more big capacity can customized design .
At the same according to customer's investment ability to choice .
Drying Type Garlic Peeling Machine Garlic dividing- peeling machine is an advanced and large-scale garlic dividing -peeling equipment, which has obtained the national invention patent. No-water garlic peeling machine The machine adopts the integrated flow mode of dividing, flaking and air stripping. The raw materials and peeled products of garlic gradually come out, with small gas consumption, high output and no noise. Besides, it is equipped with garlic waste skin extrusion molding device, which is environmentally friendly and pollution-free. The successful development of this new technology has become an important mechanical equipment in the garlic processing industry . The remarkable features of the machine are as follows 1. Garlic does not need to be cut into roots, and the equipment will automatically peel garlic petals from the root. 2. Automatically split the garlic and peel it. 3. The feeding and conveying, flaking, continuous peeling and finished product output are all automatic. 4. The machine can automatically collect the waste garlic skin and extrude it into pieces, which is convenient for waste skin treatment. 5. The machine is clean and undamaged. 6. The machine also has the characteristics of low power consumption and no noise. Have full-automatic / semi-automatic garlic peeling machine ,big capacity garlic peeling production line and customized design!
No-water dry type Garlic peeling machine ,from small capacity to big capacity welcome order ! 100-5000kg/hour from small garlic peeling machine to garlic peeling production line ! Now are peak sales season pls in advance order !
800KG-1000KG per hour Garlic ball splitting and peeling
Price 15000 INR/Piece Minimum Order Quantity 1 Piece
We are a leading Manufacturer of finish cashew grading machine, cashew kernel grading machine, grading machine, cashew raw grading machine, raw cashew size sorting machine and kaju grader from Surat, India.
Garlic Peeling Machine Introduction Peeling garlic is a necessary chore in garlic processing, because garlic peel is unpleasant to eat. Our garlic peeling machine is designed to remove the skin of garlic cloves automatically, and it is widely used in garlic products production industries. This automatic garlic peeler is an ideal machine for garlic peeling, which is high-tech and high-efficiency. Technical Data of Garlic Peeling Machine Model AMS-ST150 AMS-ST300 AMS-ST600 Voltage 220v/50Hz 220v/50Hz 220v/50Hz Total power 0.2kw 0.2kw 0.2kw Output 150kg/h 300kg/h 600kg/h Garlic Peeling Machine Features 1. Pneumatic working principle makes it a dry type equipment, the garlic cloves can be fully peeled without soaking in water 2. Air-powered processing helps avoiding damage to garlic cloves 3. No-water operating ensures less pollution 4. Fully-automatic digital control, the garlic skin and cloves has an auto-separation with more than 95% peeling rate 5. Available for different varieties of garlic How Does Dry Type Garlic Peeling Machine Work? The dry type garlic peeling machine is equipped with an air compressor, so it is using the compressed air as the power; the strong air swirling flow produced by multi-spot air jet makes garlic cloves peeled. Applications of Garlic Peeler Machine This garlic peeler machine is not only for food industries but also for commercial purpose where mass production is required. 1. Working well for garlic cloves with different sizes 2. Suitable for complete garlic production line or single station working for processing garlic 3. Can be used in garlic processing plants, catering establishments, vegetable wholesale markets, etc.
Garlic peeling machine works with compressed air as the power source to generate a strong swirling airflow that naturally peels garlic. This machine consists of two parts. The drying drum has a hot air circulation function, which can keep garlic in a dry state even in humid climates. The peeling part works with the airflow of an air compressor as the power to peel garlic cloves into garlic kernels. Garlic peeling machine Model:VG-SP100 Overall size:600*600*1250mm Power:0.2kw Voltage:220V,50HZ/60HZ,(or others) Capacity:40-50kg/hr N.weight:75kgs Air pump:Three cylinders,11kw Packaging:Wooden case Warranty:One year After sales service:Video and online meeting
Characterization: This machine uses compressed air as the motive power source, Produced a strong wind at the roundabout near the natural peeling garlic. This machine comprises two parts, the dry feeding trough has the hot blast to circulate the function, even in the humid climate would also have to be dry garlic state. Peeling of the air compressor used as the driving force and energy saving. Apply to the market, food plants, garlic, and other industries use occasions. Description: peeling the garlic into the garlic kernel. Voltage: 220/380V Power: 0.1-2KW Productivity: 70-100KG/HR Weight: about 70KG Size: L 505, W 505, H 1450mm Material: internal and external made by stainless steel Air compressor: 9-11KG; Power: 5.5KW (Suggests customer in the local equipment).
Dry-type onion peeling machine ,equpit the air compressor ,photo onion peeling machine capacity 50kg-2500kg/hour . also have other different capacity onion peeling machine according to clients inquired.Onion diameter 30-120mm different model different capacity . (also have garlic peeling machine for clients )
