VIBRATION CONNECTORS MANUFACTURERS & SUPPLIERS Stainless steel vibration eliminator: Aeroflex Vibration eliminators are specially designed to absorb mechanical vibration and destructive force of noise which is transmitted by the compressor, and also eliminate the stresses linked with piping thermal expansion in refrigeration and air condition installation. These connectors are TIG welded stainless steel hose with copper pipe, due to there is not any brazing so these connector bear more temperature as compared to brazed fitting The main function of vibration eliminator is to absorb compressor vibration and stop its transition into pipe network, by isolating the vibration the risk of damage to pipe work and related component reduce, 1.1 Size range of vibration eliminator: The comprehensive range of vibration eliminator are available from to 3 1/8 Outer diameter of copper tube, copper tube are comply a per ASTM B88 & ASTM B88M (water & general plumbing system) & ASTM B280 (air conditioners & refrigeration system) 1.2 Material specification: Aeroflex Vibration eliminators are manufacture from EN 10028-7, Stainless steel SS 321 & SS 316L annular corrugated hose with SS 304 stainless steel braid. All unit are brazed with copper tube, detail dimension of pipe and vibration connector are in the table. All the units are ultrasonically cleaned and completely dried made suitable to refrigeration system Individual package of connector are remain under sealed plastic tubing. The maximum test pressure is 1.5 time of maximum operating pressure and minimum burst pressure is 5 time of maximum operating pressure. Copper tube end are designed as sweat connection for refrigeration tubing which have inner surface as per ASME B16.18 1.3 Installation conditions: Aeroflex vibration eliminator should be installed as close as possible to the compressor and end away from the source of vibration. Vibration eliminator should be installed perpendicular to the direction of vibration (in-line with the compressor crank shaft) Horizontal Vibration: Where source of vibration is only in the horizontal plane, a single vibration and noise eliminator may be installed. Best results will be achieved by installation at 90�° to the source which is normally the crank of the compressor in a horizontal plane. See fig. 1 Vertical / horizontal vibration: Where the source of vibration and noise is in both horizontal are in vertical planes. Best result will be achieved by installing two vibration eliminators at right angle to each other see fig. 2 Although the copper tube end of vibration absorber are attached by TIG welding (special alloy filler) during installing if unit is over heated there is not effect on the connector
Circular threaded coupling connector The shells are made of aluminium alloy and the insulator is neoprene rubber, contacts are made of copper alloy and are silver plated The shells are cadmium plated with olive drab chromate finish The current rating is upto 150 amps depending upon shell size and contact arrangement. Insulation resistance is 5000 mega ohms minimum Material can be packed according to the ordered size in standard packs.

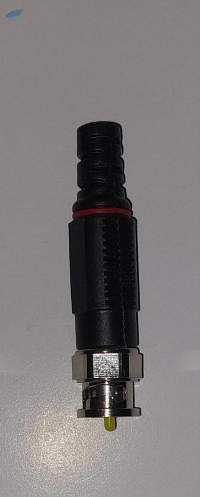

BNC CONNECTOR MALE (DELUXE) This Model is the Most popular and highly demanded Model in the whole Analogue CCTV Industry. Which provides Hexagonal Grip for to hold the product and easy installation purpose.
Connectors.Information technology
Rotating connector.Packaging solutions
Electronics.
Electronic parts.
Electronic components.
All electronic parts.
Coaxial connectors.
Telecommunications items like connectors, press components, assy.
Automobile connectors.
Mosfets..
Electronics Assemblies..
Flanges And Connectors.
Electronic & electric products.
Connectors.
RF & Microwave Connectors.
Flow Regular And Needle Free Connectors.
Copper flexible connectors.
