Product Information:
3K/6K/12K two-way carbon fiber cloth is made of raw material 3K/6K/12K carbon fiber silk, plain weave or twill weave. It has the characteristics of high strength, high modulus, light texture, corrosion resistance and high temperature resistance.
Product Specifications
3K-P180: 180g/m2, 0.25mm, 100-3200mm Width, Plain;
3K-P200: 200g/m2, 0.26mm, 100-3200mm Width, Plain;
3K-P220: 220g/m2, 0.3mm, 100-3200mm Width, Plain;
3K-P240: 240g/m2, 0.32mm, 100-3200mm Width, Plain;
3K-P280: 280g/m2, 0.34mm, 100-3200mm Width, Plain;
3K-T200: 200g/m2, 0.26mm, 100-3200mm Width, Twill;
3K-T220: 220g/m2, 0.3mm, 100-3200mm Width, Twill;
3K-T240: 240g/m2, 0.32mm, 100-3200mm Width, Twill;
3K-T280: 280g/m2, 0.34mm, 100-3200mm Width, Twill;
6K-P280: 280g/m2, 0.36mm, 100-3200mm Width, Plain;
6K-P320: 320g/m2, 0.38mm, 100-3200mm Width, Plain;
6K-P360: 360g/m2, 0.42mm, 100-3200mm Width, Plain;
6K-P400: 400g/m2, 0.48mm, 100-3200mm Width, Plain;
6K-T280: 280g/m2, 0.36mm, 100-3200mm Width, Twill;
6K-T320: 320g/m2, 0.38mm, 100-3200mm Width, Twill;
6K-T360: 360g/m2, 0.42mm, 100-3200mm Width, Twill;
6K-T400: 400g/m2, 0.48mm, 100-3200mm Width, Twill;
12K-P400: 400g/m2, 0.46mm, 100-3200mm Width, Plain;
12K-P480: 480g/m2, 0.52mm, 100-3200mm Width, Plain;
12K-P560: 560g/m2, 0.58mm, 100-3200mm Width, Plain;
12K-T400: 400g/m2, 0.46mm, 100-3200mm Width, Twill;
12K-T480: 480g/m2, 0.52mm, 100-3200mm Width, Twill;
12K-T560: 560g/m2, 0.58mm, 100-3200mm Width, Twill;
Product Features:
1.High strength
2.Light texture
3.Preservative
4.High temperature resistance
Applications:
1.Sports and leisure products: surfboards, water skis, snowboards, paddles, bicycles, sports shoes, fishing rods, rackets, fitness equipment, protective equipment, etc.;
2.Automobile and motorcycle parts: Appearance parts such as automobile surrounds, hoods, lamp eyebrows, grilles, etc., interior parts such as center consoles, gear shifters, steering wheel pedals, etc., motorcycle exhaust pipes, safety helmets, fenders, etc.;
3.Industrial products: engine parts, transmission shafts, pressure vessels, scrapers, computer and other electrical shell parts, protective shells, fire protection equipment, etc.;
4.Medical supplies: medical CT bed boards, prosthetics, brackets, etc.;
5.High-end daily necessities: bags, musical instruments, pen tubes, craft decorations, models, etc.;
Packaging Information:
Carbon fiber fabric is wound onto paper tube and then wrapped up with plastic film, which can be packed in a cardboard box or kraft paper. The rolls are to be horizontally placed rolls can be loaded into container directly or on pallets.
Product Information:
Fiberglass Chopped Strand Mat is made by chopping continuous strands into unit length chopped strands which to be spread out randomly and evenly, then bonding them together with powder or emulsion binder. Chopped Strand Mat is characterized by good combination of resin, easy operation, good wet strength retention, good laminate transparency and low cost.
It is used primarily for hand lay-up process, filament winding process and press molding of FRP products. It is suitable for the application by hand lay-up FRP molding, such as, various sheets and panels, boat hulls, boat tubs, cooling towers, corrosion resistant, vehicles, etc.
Normal width is 1040mm/1270mm, but also can produce it according to your requirements.
Product Specifications
EMC100: Powder/Emulsion, 100±8g/m2, 1040/1270/2080 3600mm Width;
EMC150: Powder/Emulsion, 150±12g/m2, 1040/1270/2080 3600mm Width;
EMC225: Powder/Emulsion, 225±15g/m2, 1040/1270/2080 3600mm Width;
EMC300: Powder/Emulsion, 300±15g/m2, 1040/1270/2080 3600mm Width;
EMC380: Powder/Emulsion, 380±18g/m2, 1040/1270/2080 3600mm Width;
EMC450: Powder/Emulsion, 450±20g/m2, 1040/1270/2080 3600mm Width;
EMC600: Powder/Emulsion, 600�±25g/m2, 1040/1270/2080 â?3600mm Width;
Product Advantages:
*Short strands of fibers held together by a styrene binder
*Builds up thickness quickly
*Very economical and offers good stiffness.
*Conforms to tight curves and corners
*Can be torn of cut to size
*Low cost and easy to use
Packaging Information
Fiberglass stitched mat is wound onto paper tube and then wrapped up with plastic film, which can be packed in a cardboard box or kraft paper. The rolls are to be horizontally placed rolls can be loaded into container directly or on pallets for Fiberglass stitched mat.

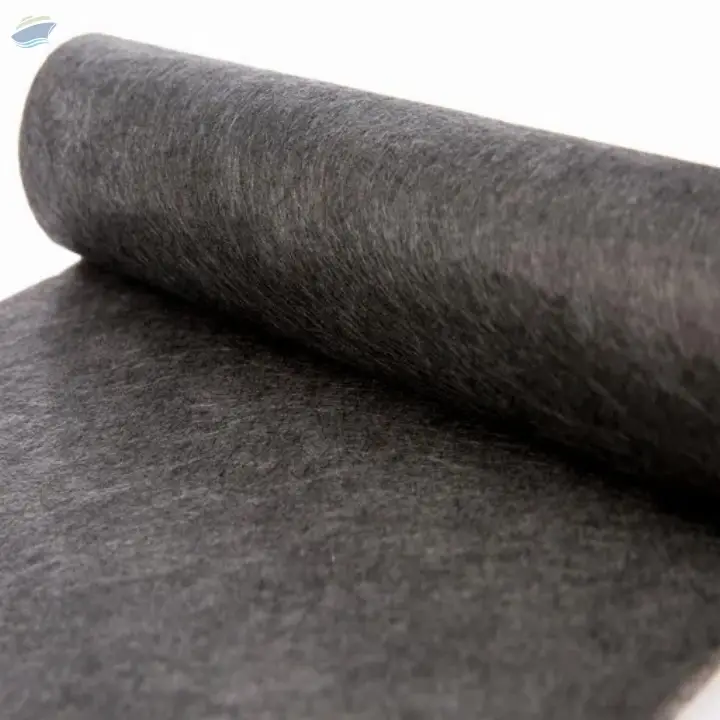

Product Information:
Carbon Fiber Surface Mat is a non-woven tissue made from randomly oriented carbon fibers distributed in special binder by a wet lay process. It's a new super carbon material, with properties of high performance reinforced, high strength, high modulus, fire resistant, corrosion resistant, fatigue resistant composites.
It's mainly applied to aerospace, medical instrument, sports equipment, conductivity, anti-static, and anti-spark properties and car parts etc.
Product Specifications
C-FM10: 10±1g/m2, 100-1300mm Width, Resistance()

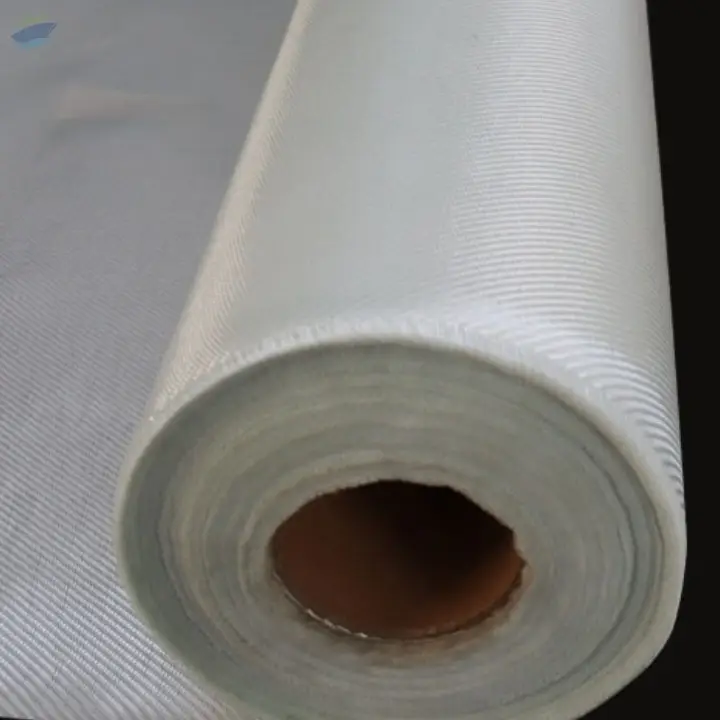

Product Information:
Fiber glass cloth is a multi-directional reinforced fabric made of glass fiber yarn, with plain weave, twill weave, satin weave.
Fiberglass cloth is an engineering material, which has the excellent merit such as anti-burns, anti-corrosion, stable-size, heat-isolation, minimum elongated shrinkage, high intensity.
1. Suitable for reinforced unsaturated resin, vinyl resin, epoxy resin, phenolic resin
2. Widely used in hand lay-up, pultrusion, winding and vacuum infusion and other processes
3. This new material product has already covered many domains such as electric appliances, electronic, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire prevention and environmental protection, etc. Terminal products include: pultruded profiles, auto parts, yachts, pipes, plates, sports equipment, wind energy blades and other FRP products.
Product Specifications
EW25: 25±1g/m2, 100-3200mm Width, Plain;
EW50: 50±2g/m2, 100-3200mm Width, Plain;
EW80: 80±3g/m2, 100-3200mm Width, Plain;
EW100: 100±3g/m2, 100-3200mm Width, Plain;
EW135: 135±4g/m2, 100-3200mm Width, Plain;
EW160: 160±5g/m2, 100-3200mm Width, Plain;
EW200: 200±6g/m2, 100-3200mm Width, Plain;
EW300: 300±9g/m2, 100-3200mm Width, Plain;
EWT100: 100±3g/m2, 100-3200mm Width, Twill;
EWT135: 135±4g/m2, 100-3200mm Width, Twill;
EWT160: 160±5g/m2, 100-3200mm Width, Twill;
EWT200: 200±6g/m2, 100-3200mm Width, Twill;
EWT300: 300±9g/m2, 100-3200mm Width, Twill;
EWS300: 300±9g/m2, 100-3200mm Width, Satin;
Product Properties:
1.High intensity and quick wet out
2.Anti-corrosion and electric insulation
Packaging Informationï¼?
It is wound onto paper tube and then wrapped up with plastic film, which can be packed in a cardboard box or woven bag. The rolls are to be horizontally placed rolls can be loaded into container directly or on pallets for Fiberglass stitched mat.
Product Information:
The fiberglass knitted stitched felt is made by cutting the fiberglass raw yarn into a certain length, randomly and uniformly distributed, and then stitched with stitching thread. It's mainly applied to fiberglass pipes, pultrusion profiles and insulation materials.
Weight(g/m2): 300g/m2~1800g/m2
Width(mm): 100mm-3900mm.
Also can select to add the Polyester veil (30g/40g) or chopping layer(300g) according to the customer's requirement.
Product Specifications
CMK300: C-glass, 300±20g/m2, 100-3900mm Width;
CMK380: C-glass, 380±20g/m2, 100-3900mm Width;
EMK250: E-glass, 250±10g/m2, 100-3900mm Width;
EMK300: E-glass, 300±15g/m2, 100-3900mm Width;
EMK380: E-glass, 380±15g/m2, 100-3900mm Width;
EMK450: E-glass, 450±20g/m2, 100-3900mm Width;
EMK600: E-glass, 600±25g/m2, 100-3900mm Width;
Applications:
It's mainly applied to fiberglass pipes, pultrusion profiles and insulation materials.
Packaging Information:
It is wound onto paper tube and then wrapped up with plastic film, which can be packed in a cardboard box or kraft paper. The rolls are to be horizontally placed rolls can be loaded into container directly or on pallets.

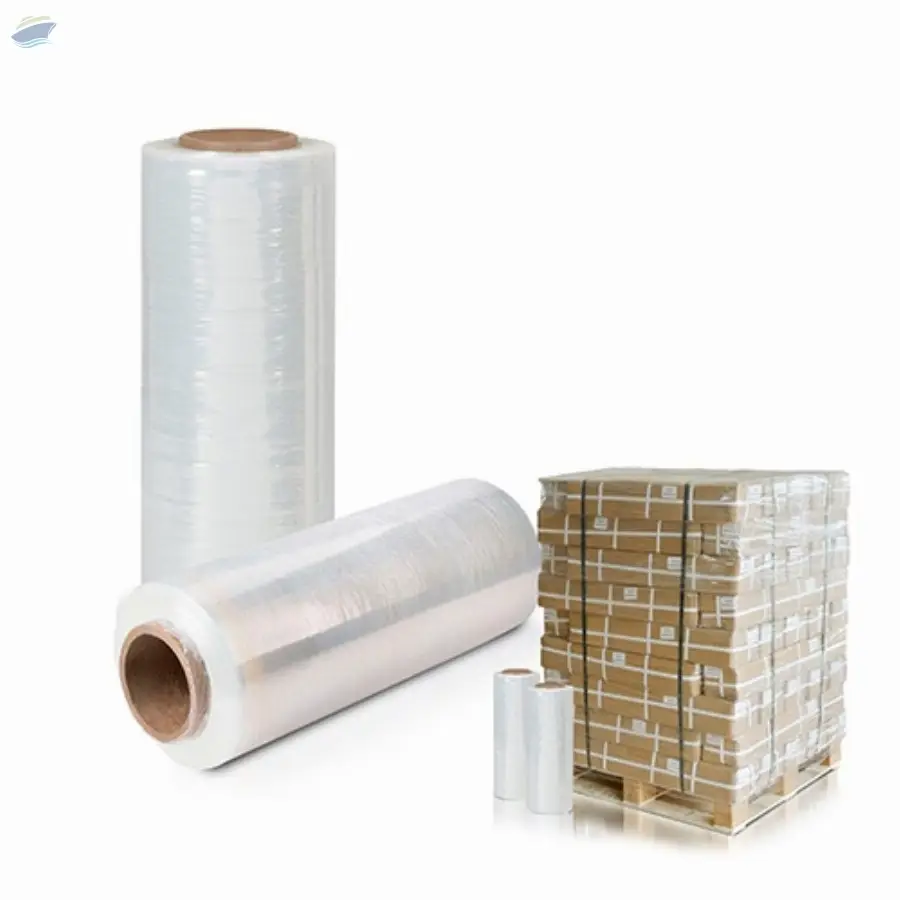

Product Description:
Stretch film is a plastic film made from linear low-density polyethylene used to secure, bundle, and stabilize products. The film is pulled and stretched around products during application to create tightly secured loads. Stretch film comes in various widths, thicknesses, and colors for different applications.
Hand Stretch Film
Hand stretch film is a specific film designed for hand-wrapping pallets. It is best for lower-capacity packaging operations and slower turnaround. Designed with a hand-wrapping method in mind, the hand stretch film rolls typically weigh about 10 pounds when full. Hand-wrapping pallets can cause injury over time for workers, and it's best to reevaluate your needs continuously to see if your operation could benefit from a stretch wrapping machine. These are much faster and apply the perfect amount of containment force every time to reduce the likelihood of primary packaging and product damage. Hand stretch film is not optimal for operations that wrap more than 10 pallets a day, as hand-wrapping isnot the most efficient method of wrapping larger quantities.
Machine Stretch Film
Machine stretch film specifically fits onto automatic and semi-automatic stretch wrapping machines. These come in much larger rolls than hand stretch film does, as machines have a larger capacity and donot have to worry about injuries or overextending themselves from lifting heavy stretch film rolls. Machine stretch film is best for use in a machine such as a turntable, rotary arm, rotary ring, or horizontal stretch wrapping machine. Stretch wrapping machines provide the exact right amount of containment force every single time. This allows for more consistent packing, safer products, and less waste of stretch film.
Features
*Super Strong and Durable
*Superior Tear and Puncture Resistance
*High Cling for Minimal Slippage
*Superior Clarity Keeps Carton Markings Visible
*Unwinds Smoothly and Quietly
*Available in Hand or Machine Grade, Cast or Blown, and Pre-Stretched Film
*Minimal Neck Down During Application
Product Specifications
SWF-A: PE/LLDPE, 50-1500mm Width, 10-40um Thickness, 100-4000m Length, Machine;
SWF-H: PE/LLDPE, 50-1500mm Width, 10-40um Thickness, 100-4000m Length, Manual;
Applications
Dirt and Dust Protection
Pallet Stabilization
Pallet Unitizing
Tamper Resistance
Trucking
Product Description:
Extend Lines or Vacuum Bagging and Infusion
Spiral Tubing is a resin infusion standard and is ideally suited for in-bag vacuum line extenders or resin feed lines. This tubing is often used in vacuum infusion to allow vacuum pressure to be easily dispersed around a part. To ensure resin flow is not impeded, we recommend wrapping tubing in nylon or polyester peel ply.
Flexible vacuum infusion translucent plastic spiral tube for resin distribution of all types of thermosetting resins and for vacuum bagging processes.
Resin infusion hose -- It is made of PE and used to provide a very free lowing channel through which the resin is distributed near the point where the resin is first fed into the composite.
Spiral hose -- Resin flows freely through the center of the spiral tube, but just as easily out of the spirals in the side, allowing resin to be supplied all the way along an edge of the composite.
Product Specifications:
SW12: PE, ID9mm*OD12mm, 80 Celsius, 50m/rolls;
SW12: PP, ID9mm*OD12mm, 120 Celsius, 50m/rolls;
SW14: PE, ID11mm*OD14mm, 80 Celsius, 50m/rolls;
SW14: PP, ID11mm*OD14mm, 120 Celsius, 50m/rolls;
SW16: PE, ID13mm*OD16mm, 80 Celsius, 50m/rolls;
SW16: PP, ID13mm*OD16mm, 120 Celsius, 50m/rolls;
Product Features:
*Low material cost.
*PE material, strong tube wall makes the spiral tube not deformed under atmospheric pressure.
Packaging Information:
PE bag or carton
Storage Method:
Stored in a cool and dry place, and make sure not directly touch the ground or wall to avoid moisture. Do not remove the original packaging when store.
Scenes To Be Used:
Used in vacuum infusion and prepreg process.

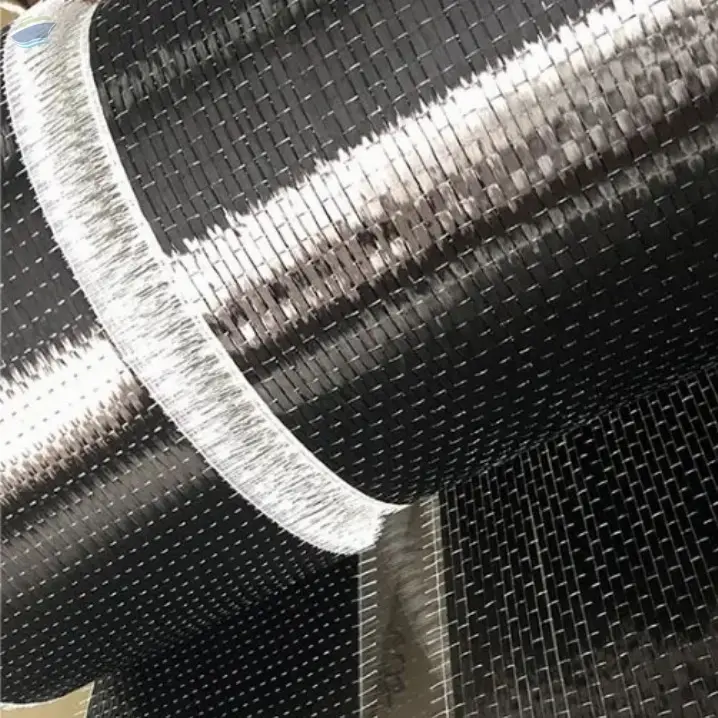

Product Information:
The warp direction is all made of 12K carbon fiber filaments, and the weft direction is woven with hot-melt wires. The strength of the cloth is concentrated in one direction. It is mainly used for repairing and sealing cracks in buildings, increasing load and reinforcement, and resisting acid and alkali corrosion. For example: Concrete beams are flexurally strengthened, seismically strengthened. Reinforcement of civil buildings such as buildings, schools, hospitals, factories and other industries. Dams, roads, bridges and other infrastructure reinforcement. Reinforcement and anti-corrosion of large chimneys, mines, etc., lining of pipes, etc.
Product Specifications
12K-UD200: 1Level, 200g/m2, 0.111mm Thickness, 100-3200mm Width;
12K-UD200: 2Level, 200g/m2, 0.111mm Thickness, 100-3200mm Width;
12K-UD300: 1Level, 300g/m2, 0.167mm Thickness, 100-3200mm Width;
12K-UD300: 2Level, 300g/m2, 0.167mm Thickness, 100-3200mm Width;
Product Features
1. Soft texture, can be effectively pasted on uneven surfaces, suitable for various shapes and structures.
2. There is no need for large-scale construction equipment and on-site fixed facilities. The product can be cut at will, and the construction is simple and the cycle is short.
3. It is resistant to acid and alkali corrosion and can be used in various harsh environments.
4. Light weight, thin cloth surface, does not affect the appearance and shape of the structure.
5. Excellent physical properties, the tensile strength far exceeds that of ordinary steel.
6. Environmentally friendly and pollution-free.
Applications
It is mainly used for repairing and sealing cracks in buildings, increasing load and reinforcement, and resisting acid and alkali corrosion.
Packaging Information
Carton and Tray
Product Description:
Flow tube is mainly used in vacuum infusion and prepreg process, feeding channel for resin.
Resin infusion hose : It is made of PE and used to provide a very freeâ??lowing channel through which the resin is distributed near
the point where the resin is first fed into the composite.
Spiral hose : Resin flows freely through the center of the spiral tube, but just as easily out of the spirals in the side,
allowing resin to be supplied all the way along an edge of the composite.
1.The best way to select a tube is to first decide which materials are chemically suitable, and then choose the one which best meets the physical demands of the application.
2.For maximum tube life, use a large bore tube at low speed. For maximum flow rate use the largest tube at maximum speed. For maximum accuracy, use a small bore tube at maximum speed.
3.Suction lift depends on the tube restituting fully before the advance of the next roller. If it does not, the flow rate will be reduced. For maximum suction lift or pressure, use the smallest practicable bore size of tubing and run the pump at the slowest possible speed.
Product Specifications:
FT12: PE, ID10mm*OD12mm, 80 Celsius, 200m/rolls;
FT12: PP, ID10mm*OD12mm, 120 Celsius, 200m/rolls;
FT16: PE, ID13mm*OD16mm, 80 Celsius, 200m/rolls;
FT16: PP, ID13mm*OD16mm, 120 Celsius, 200m/rolls;
FT20: PE, ID17mm*OD20mm, 80 Celsius, 200m/rolls;
FT20: PP, ID17mm*OD20mm, 120 Celsius, 200m/rolls;
Product Features:
*Low material cost.
*PE material, strong tube wall makes the spiral tube not deformed under atmospheric pressure.
Packaging Information:
The fabric is wound on a paper tube, then packing by plastic film, warp by Bubble film ,Place the pallet horizontally or pack it in a carton and then pallet it. The pallet and the goods are packed with packing tape, and then wrapped around the stretch film.
Storage Method:
Stored in a cool and dry place, and make sure not directly touch the ground or wall to avoid moisture. Do not remove the original packaging when store.
Scenes To Be Used:
Vacuum processing for industry
Product Description:
Vacuum bag film is a high elongation, high strength, transparent film. This type of vacuum bag film has a higher tensile strength and not easily damaged during the operating process. A five-layer co-extruded type vacuum bag film, which has been widely recognized by the market and can provide greater security. Vacuum bag film has a higher tensile strength and elongation at break, the recommended maximum operating temperature is 150 Celsius, suitable for the vacuum infusion processing of unsaturated vinyl resin and epoxy resin etc., this type of bag film is widely used in the vacuum infusion molding process of wind energy structure, car industry, yacht industry and others. It is the best choice of the autoclave process at low temperature. Transparent and light yellow, so it is easier to observe the state of resin.
High temperature resistant vacuum bag film, temperature resistance up to 230 Celsius, high tensile strength, It can be used in curing furnaces and autoclaves, has good barrier properties under high temperature and high pressure, and is suitable for vacuum bag technology of various resin systems.
Product Specifications:
CVF120: Polyester; 120 Celsius, 50/65/75m Thickness, 1200-14000mm Width;
CVF150: Polyester; 150 Celsius, 50/65/75m Thickness, 1200-14000mm Width;
CVF170: Polyester; 170 Celsius, 50/65/75m Thickness, 1200-14000mm Width;
CVF200: PA; 200 Celsius, 50/65/75m Thickness, 1200-14000mm Width;
CVF230: PA; 230 Celsius, 50/65/75m Thickness, 1200-14000mm Width;
Product Features:
Superior performance and wide application process conditions. High temperature resistance and high strength provide guarantee for higher quality parts forming. A variety of sizes are available, reducing process waste and reducing use costs.
Scenes To Be Used:
Vacuum infusion molding process of wind energy structure, car industry, yacht industry and others
Product Information:
Construction film is a general-purpose poly film that is ideal as a drop cloth or vapor barrier. Construction Film can be protection from weather, dust and debris, or chemicals.
PE films used in the construction industry play an important role in covering specific spaces and protecting valuable equipment and machinery. It can be used for protection against the elements, dust, dirt and dampness.
XXW-N-PE: 4-30um Thickness, 0.5-8m Width, 80-240m Length, PE (New);
XXW-O-PE: 4-30um Thickness, 0.5-8m Width, 80-240m Length, PE (Old);
Product Advantages:
Various widths and thicknesses of industrial packaging film, engineering construction film, Black plastic film, white plastic film, rain-proof film. Can be customized according to the size and specifications required by customers.
1.The polymer material in the concrete curing film is not easy to volatilize after absorbing water. It can effectively improve the firmness of concrete, reduce cracks and improve economic benefits.
2. High elasticity for packaging
3. Using new raw materials, better quality
Warning: This plastic sheeting is not UV resistance treated and not recommended as outdoor covers.
1. Processing Customization
Length, width, thickness, color, Logo can be customized
2. Heat insulation, high temperature resistance, antifreeze, not easy to age
3. High transparency, waterproof and moisturizing, not easy to break
4. Strict packaging, so that every roll of goods is brand new in your hands
Raw Materials:
High molecular polyethylene raw material, high strength, no peculiar smell, not easy to volatilize and rot, no impurities. long lasting.
Scenes To Be Used:
1. Concrete moisture proof
2. Anti-dry cracking of buildings
3. Road Maintenance
4. Product Packaging

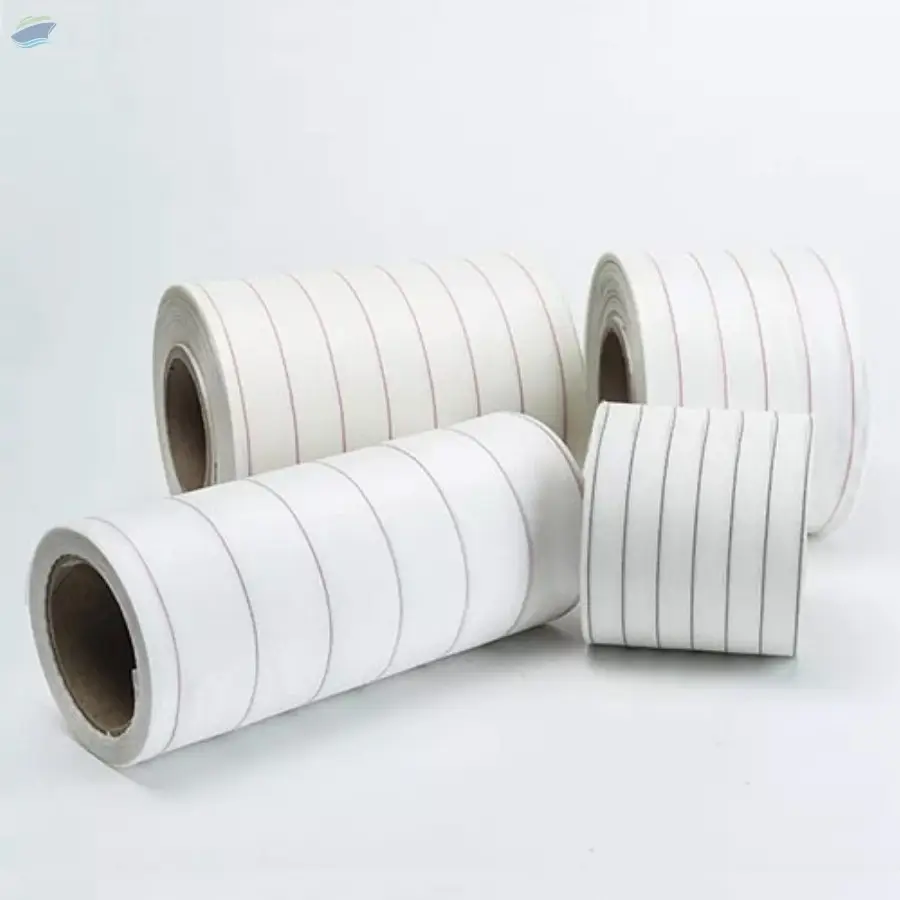

Product Information:
Peel ply is plain weaved by poly-amide yarn. The products is through strict rinse and heat setting, surface clean without pollution, good resistance to tear, stability under high temperature, it can easy to spray paint processing, with good mold release. It is widely applied in aviation, aerospace, ship building and wind building.
CVP150: Polyester, 85g/m2, 150 Celsius, 100-2300mm Width, 50-500m Length;
CVP150: Polyester, 105g/m2, 150 Celsius, 100-2300mm Width, 50-500m Length;
CVP200: PA6, 85g/m2, 200 Celsius, 100-2300mm Width, 50-500m Length;
CVP200: PA6, 105g/m2, 200 Celsius, 100-2300mm Width, 50-500m Length;
CVP230: PA66, 85g/m2, 230 Celsius, 100-2300mm Width, 50-500m Length;
CVP230: PA66, 105g/m2, 230 Celsius, 100-2300mm Width, 50-500m Length;
Product Features:
*Made by polyester have an advantage price
*Temperature resistance 150 Celsius / 200 Celsius / Celsius
*No release agent coating on the surface will not pollute the product
*It has good mold release and obvious marking line, can prevent leakage and residue
*Fabric texture is formed on the surface of the product after stripping, improve the shear force of structural bonding, make easy for secondary bonding and sanding.
Packaging Information:
Poly bag + Carton + Pallet
Scenes To Be Used:
1.Aviation
2.Aerospace
3.Ship Building
4.Wind Building
Product Description:
Spiral warp combo with flow media is mainly used in vacuum infusion and prepreg process, providing the flow channel for resin. Resin flow tube or Protect wire. Used in vacuum infusion and prepreg process.
Product Specifications:
SWC12: ID9mm*OD12mm, 100-160g/m2 for Mesh, 100m/rolls;
SWC14: ID11mm*OD14mm, 100-160g/m2 for Mesh, 100m/rolls;
SWC16: ID13mm*OD16mm, 100-160g/m2 for Mesh, 100m/rolls;
Product Features:
*Low material cost.
*Spiral warp combo with flow media is mainly used in vacuum infusion and prepreg process, providing the flow channel for resin
Packaging Information:
PE bag or carton
Storage Method:
Stored in a cool and dry place, and make sure not directly touch the ground or wall to avoid moisture. Do not remove the original packaging when store.
Scenes To Be Used:
Used in vacuum infusion and prepreg process.
